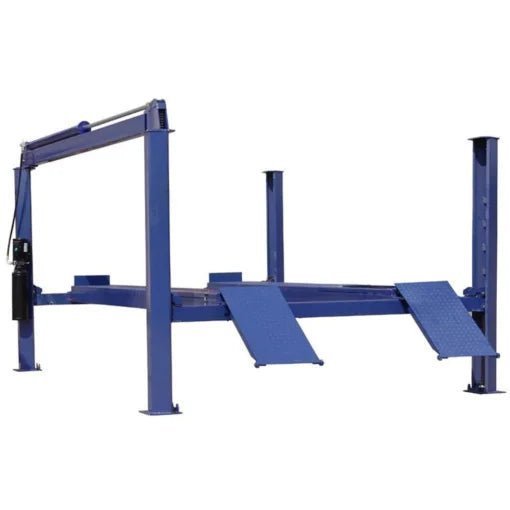

TUXEDO FP14K 14,000 LB CHAIN DRIVEN 4 POST LIFT

TUXEDO FP14K 14,000 LB CHAIN DRIVEN 4 POST LIFT

$1,349.10 USD

Free US Shipping
On every order, no minimum
Fast Dispatch
Ships in 1–2 business days
Delivery 4–7 Days
Tracked to your door
60-Day Returns
No restocking fees
Secure SSL Checkout Money-Back Guarantee US-Based Support
High demand — selling faster than usual. Order today for dispatch within 1–2 business days.
Buy Now

Free Shipping For USA

  • Check Mark Total Delivery Time: 4–7 Business days
  • Check Mark 90 Days Return Window
  • Check Mark Secure Payments
Secure Payment Methods
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
  • Apple Pay
  • Visa Card

Features & Benefits

  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Diamond Plated Runways
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • 5 yr Structural – 2 yr Hydraulic Warranty

Atlas® ATTD-414 Specifications

Capacity 14,000 lb.
Lifting Height80″ (6′ 8″)
Overall Width Of Columns (Without Motor)130 7/8″ (10′ 10 7/8″)
Overall Width Of Columns (With Motor)138 7/8″ (11′ 6 7/8″)
Overall Length With Approach Ramp255″ (21′ 3″)
Length Between Columns197 1/4″ (16′ 5 1/4″)
Runway Length208 5/8″ (17′ 4 5/8″)
Runway Width20″
Thickness Of Runway8 3/4″
Width Between Runways46 7/8″ (w/ Rail 44 3/8″)
Outside Runway To Outside Runway86 7/8″ (7′ 2 7/8″)
Clearance Under Runways71 1/4″ (5′ 11 1/4″)
Clearance Between Columns116″ (9′ 8″)
Height Of Columns91 1/8″ (7′ 7 1/8″)
Maximum Wheel Base197″ (16′ 5″)
Drive Thru102 1/8″ (8′ 6 1/8″)
Air Requirement85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement 3-5 GallonsAW32/AW46 (NOT INCLUDED)
