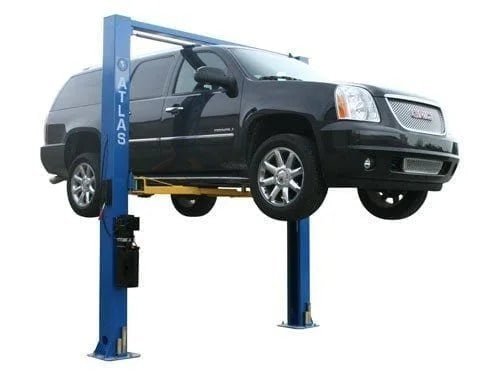

Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

$707.40 USD

Free US Shipping
On every order, no minimum
Fast Dispatch
Ships in 1–2 business days
Delivery 4–7 Days
Tracked to your door
60-Day Returns
No restocking fees
Secure SSL Checkout Money-Back Guarantee US-Based Support
High demand — selling faster than usual. Order today for dispatch within 1–2 business days.
Buy Now

Free Shipping For USA

  • Check Mark Total Delivery Time: 4–7 Business days
  • Check Mark 90 Days Return Window
  • Check Mark Secure Payments
Secure Payment Methods
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
  • Apple Pay
  • Visa Card

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities

  • 9,000 lb. Capacity
  • Overhead, Open-Floor Lift
  • Single-Piece Column Design
  • Overall Height: 142″ (11′ 10″)
  • 3-Stage Front Arms/2-Stage Rear Arms
  • Automatic Arm Restraints
  • Single-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders
  • Free 12 Piece Truck Adapter Set
  • Mounting Hardware Included
  • Shipping Weight: 1,430 lbs.
  • 5 yr Structural – 2 yr Hydraulic Warranty
Atlas® ATTD-9OHSC-SS Specifications
Capacity9,000 LB.
Overall Height142″ (11′ 10″)
Overall Floor Width133 1/2″ (11′ 1 1/2″)
Outside Column to Outside Column125 1/2″ (10′ 5 1/2″)
Maximum Lift Height (Without Adapters)76 3/4″
Maximum Lift Height (With Adapters)87 3/4″
Minimum Arm Height4″
Inside Column109 1/2″ (9′ 1 1/2″)
Drive Thru100 1/2″ (8′ 4 1/2″)
Column Size8″ x 9 3/8″
Column Thickness of Steel5mm
Base Of Lift16 3/4″ x 17 3/4″
Motor/Electrical Requirement220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement3-5 Gallons AW32/AW46
Shipping Weight1,430 LBS.
Adapter Heights4 Each 2″, 3″, 6″
Arm Hole/Adapter Peg Size1.5″
Requires a minimum of 4″ of concrete with a 3000 psi. rating
